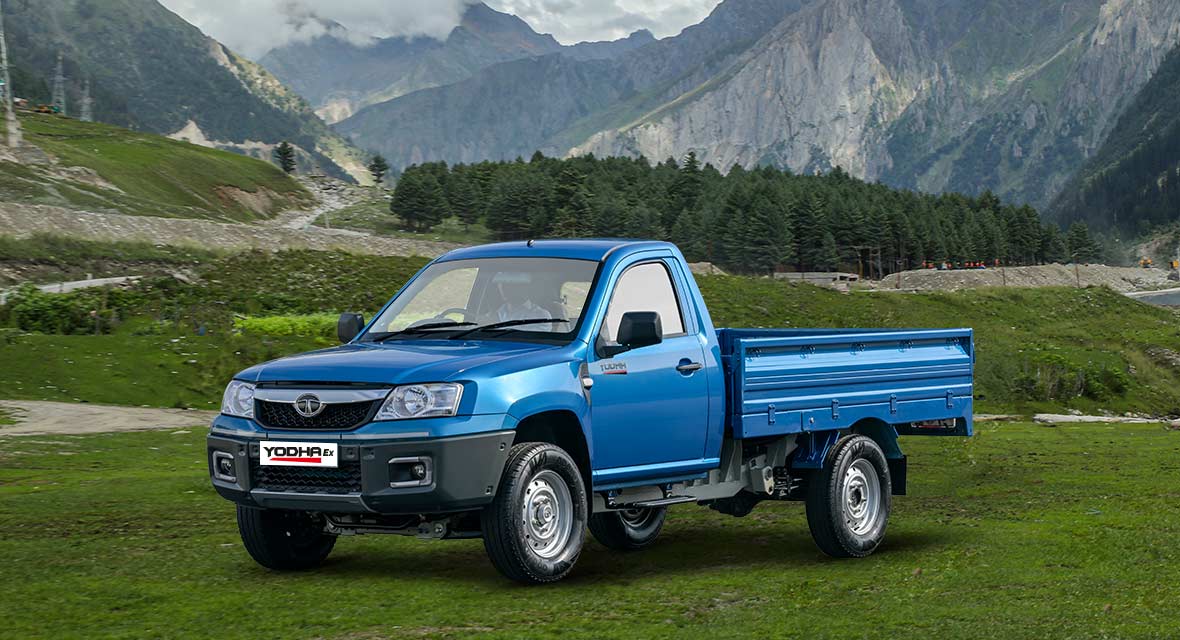

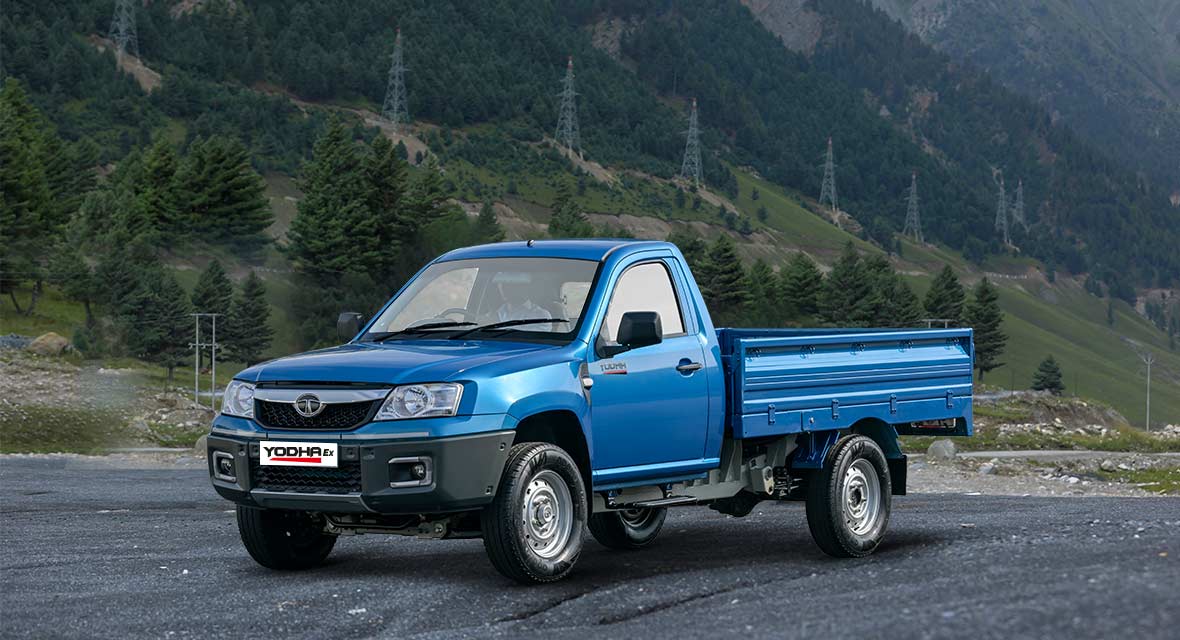

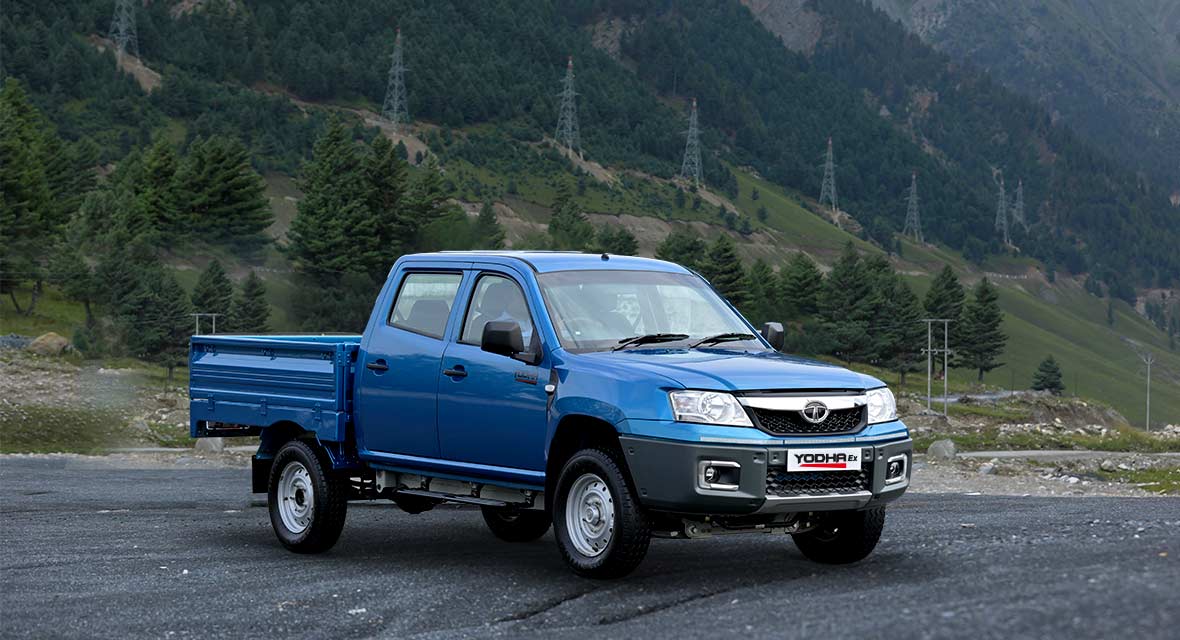

Tata Yodha EX
Become unstoppable in your business as no road is impossible for the all new Tata Yodha Ex, which comes equipped with Excellent features that take profitability to the next level. The Turbocharged DI Engine produces 100 kW power and 250 Nm torque, enabling effortlessly faster deliveries. The low turning radius, 16” big tyres, 210mm high ground clearance ensure Excellent performance on every terrain and in every application.
TATA Yodha EX FEATURES
Excellent Performance
-
Powerful & Proven Turbocharged DI Engine - Output: 74.8 kW (100 HP) and Torque: 250 Nm.
-
Big 250mm diaclutch plate Self-adjusting hydraulic clutch assemblyBig 250mm diaclutch plate Self-adjusting hydraulic clutch assembly
-
Low 6.25m turning radiusFor precise and smooth driveability
-
210mm high Ground ClearanceFor easy navigation through rough terrains
Excellent load distribution
-
Load body dimension: (2650 mm x 1850 mm)
-
Loading space: 48 SqFt (4.5 m2)
-
Payload: 1205Kg
-
GVW: 2990Kg
-
Wheelbase: 3300mm
-
Overall length: 5350mm
-
Overall width: 1860mm
Excellent Aggregates
-
With additional reinforcement on belly for enhanced sturdiness
-
With twin pot calipers, for efficient braking
-
Rear Suspension - With Parabolic leaf springs for superior load bearing ability.
-
Front Suspension - With independent coil spring over shock absorber

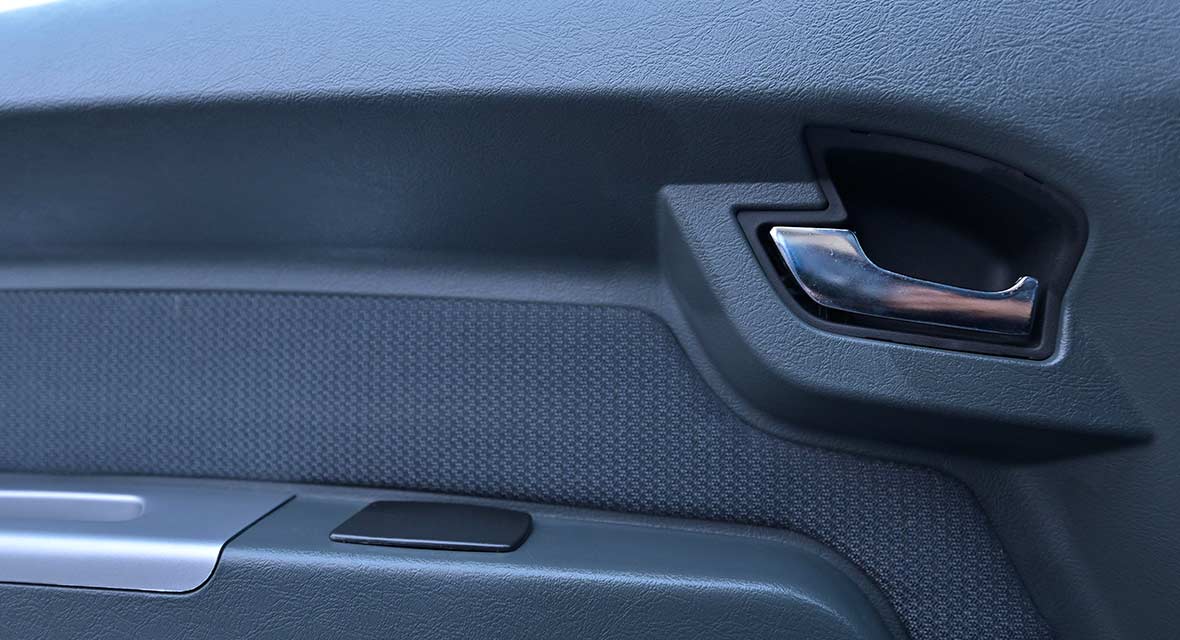

Excellent Interiors
-
Hydraulic power steering for smooth driving experience
-
Ergonomic gear shift lever with central power window controls
-
Loaded with utility spaces and high quality fitments
-
Equipped with reflex reflector and utility compartments
-
When style meets comfort
Excellent Savings
-
Best-in-class fuel economy
-
Eco-switch and GSA for optimized vehicle operation
-
20,000 KMs for engine oil
-
80,000 KMs for gear box oil
-
On entire driveline
-
No hub greasing required throughout vehicle life –additional savings on maintenance
-
Prices of the parts benchmarked with industry prices for best affordability
SPECIFICATIONS
Take an in-depth look at the technical specifications that make all the difference
Engine type
- Type :
- TATA 2.2L VARICOR Intercooled Turbocharged BS6 DI engine
- Output :
- 74.8 kW (100 HP) @ 3750 r/min
- Torque :
- 250 Nm@1000 -2500 r/min
Clutch and Transmission
- Clutch :
- Single Plate dry Friction type 260 mm Dia
- Gearbox :
- G76-5/4.49 mark 2, Synchromesh 5F+1R
- Steering :
- Power Steering
Brakes
- Front brakes :
- Hydraulic, twin pot disc brake
- Rear brakes :
- Drum Brake
- Front suspension :
- Double wishbone type suspension with independent coil spring
- Rear suspension :
- Parabolic Leaf Springs
Wheels and Tyres
- Tyre :
- 215/75 R 16 Radial
- Rim size :
- 16 inch
Vehicle Dimensions (mm)
- Wheel Base :
- 3300
- Width :
- 1860
- Length :
- 5350
- Height :
- 1810
- External Load body :
- 2650 mm (8.7 ft) x 1850 mm (6 ft)
- Turning Circle Radius :
- 6250 mm ( 6.25 m)
- Ground Clearance (mm) :
- 210 mm
Weight (kg)
- GVW :
- 2990
- Kerb Weight :
- 1760
- Payload :
- 1205 kg
Performance
- Gradeability :
- 40%
- Seating Capacity :
- D+1
- Engine Oil change interval :
- 20 000 km
- Warranty (On Driveline) :
- 3 Years/3 Lac kms

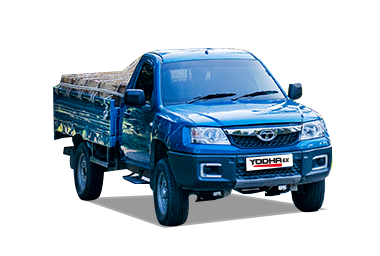

Tata Yodha EX
