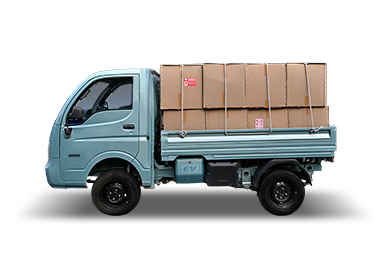

Tata ACE CNG 2.0
TATA Ace CNG 2.0 is India's 1st and only Electric Mini Truck with a 1000 kg payload, powered by the EVOGEN. Ace CNG 2.0 offers a comprehensive solution for dedicated on-time delivery with zero-emission solutions for Last Mile Urban Cargo Transportation. The Ace CNG 2.0 features a 161*km range on a single charge and has a 7* year battery warranty. This advanced electric commercial vehicle offers a comprehensive solution for use across FMCG/FMCD, courier and e-commerce companies. Developed with a dual capability of Fast and Slow charging to ensure the highest run-time and the widest network of CNG Service Centers across the country.
TATA ACE CNG 2.0 FEATURES
POWER & PICKUP
-
High Pickup of 130 Nm and power of 36 HP for faster trips
MILEAGE
-
161 km ARAI certified range in single charge
-
Regenerative braking while braking, coastings & downhill
-
Fast charging in 105 minutes - enabling multishift operations
CONVENIENCE
-
Clutchless Operations & single speed gear box for a fatigue free driving
-
Low effort Steering Wheel
-
Fleetedge solution for real time vehicle tracking and analysis
-
Ease of charging at Home through 16 Amp socket
-
Digital instrument cluster
-
Seats with Head Rest & Ample leg room
PAYLOAD
-
Higher Payload of 1000 kg
-
High Loadability due to Front & rear leaf spring suspension
-
Heavy Duty Chassis
-
Bigger 13" tyre for higher loadability
LOW MAINTENANCE
-
Fewer moving parts leading to lower maintenance and higher uptime
-
Lower cost of operations leading to savings in running cost
-
Liquid cooled Battery Cooling Technology for enhanced battery safety & its life
HIGH PROFITS
-
High Loadability for higher revenues
-
161 km of range in single charge leading to savings in running cost
-
7 year HV Battery warranty with enhanced battery life
SPECIFICATIONS
Take an in-depth look at the technical specifications that make all the difference
ENGINE
- Type
- AC Induction Motor
- Power :
- 27 kW (36 HP) @ 2000 rpm
- Torque :
- 130 Nm @ 2000 rpm
- Gradeability :
- 20%
Clutch and Transmission
- Gear Box Type :
- Fixed single speed
- Steering :
- Manual Steering System 27.9-30.4(Variable); 380 mm Dia
- Max Speed :
- 60 kmph
Brakes
- Brakes :
- Front - Disc brakes; Rear - Drum brakes
- Regenerative Brake :
- Yes
- Suspension Front :
- Rigid Axle with Parabolic Leaf Spring
- Suspension Rear :
- Live Axle with Semi-elliptical Leaf Spring
- Suspension Rear :
- Live Axle with Semi-elliptical Leaf Spring
Wheels and Tyres
- Tyres :
- 155 R13 LT 8PR Radial (Tubeless Type)
Vehicle Dimensions (mm)
- Length :
- 3800
- Width :
- 1500
- Height :
- 1840
- Wheelbase :
- 2100
- Front Track :
- 1310
- Rear Track :
- 1343
- Ground Clearance :
- 160
- Cargo Box Dimensions :
- CLB : 2155 x 1470 x 300 - Flat Bed : 2155 x 1470
- Min TCR :
- 4300
Weight (kg)
- GVW :
- 2120
Battery
- Battery Chemistry :
- LFP (Lithium-Iron Phosphate)
- Battery Energy (kWh) :
- 21.3
- IP Rating :
- 67
- Certified Range :
- 161 km in single charge
- Slow Charging time :
- 7 hrs (10% to 100%)
- Fast Charging time :
- 105 min (10% to 80%)
Performance
- Gradability :
- 20%
Seating & Warranty
- Seats :
- D+1
- Warranty :
- 3yrs / 125000 kms
- Battery Warranty :
- 7 yrs / 175000 kms
